VSK design and manufacturing impact bed specialized for coal mines, cement factory, power plant, port, quarry pit, steel and many other industries.
Superior quality of UHMWPE imapct bars with modern designed energy absorb structure, VSK impact bed reprents stable quality and ideal solution of impact harm and dust sealing for loading point.
VSK impact bed suitable for material size can be max. 200mm, in weight of 100Kg max., height from the feeding point to conveyor belt surface can be max. 5meters .
VSK’s standard is 55mm, 75mm and 100mm thickness and 500mm to 1800mm length. Special size can be custom-made by request. The polyethylene cover is available in various colors such as green, red, white, blue or black. Besides for general applications, VSK has developed anti-static and fire-retardant impact bars for underground mining or other explosive environments.

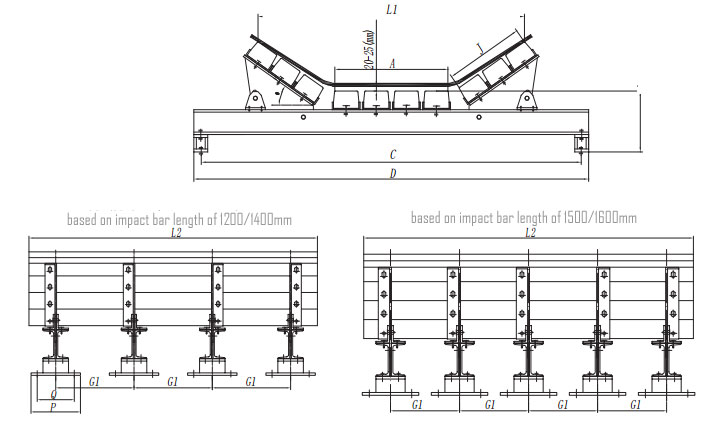

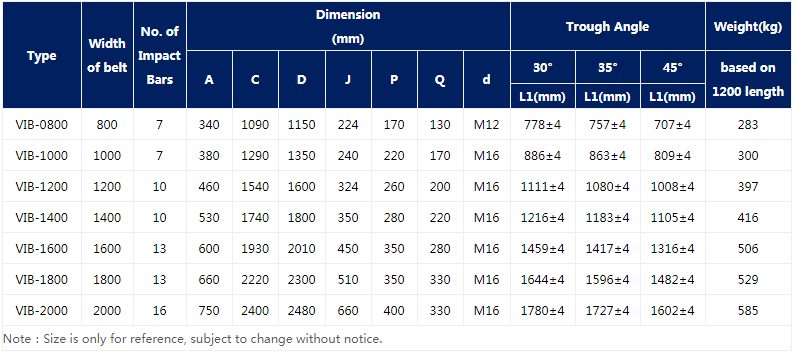

Following are standard specifications we normally produce for stock.

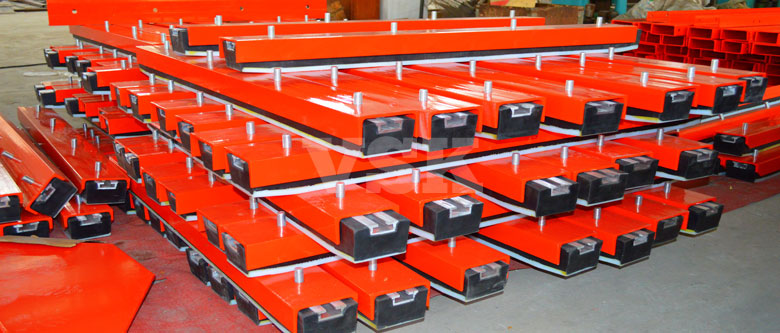

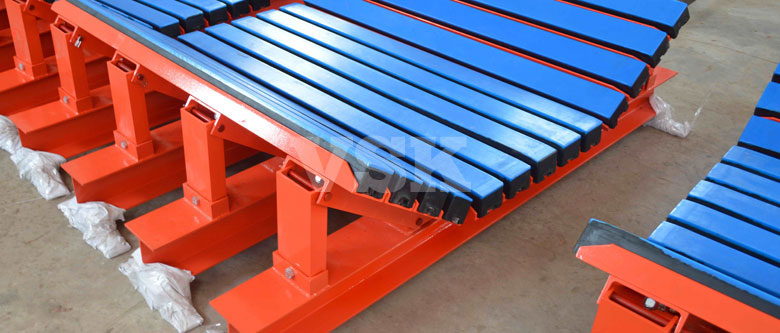

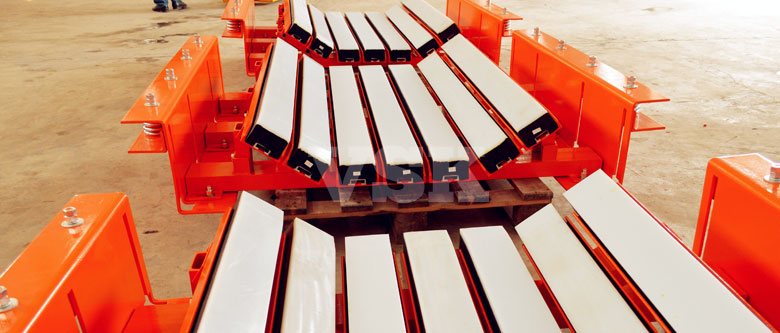

Impact Bar, Impact Bed

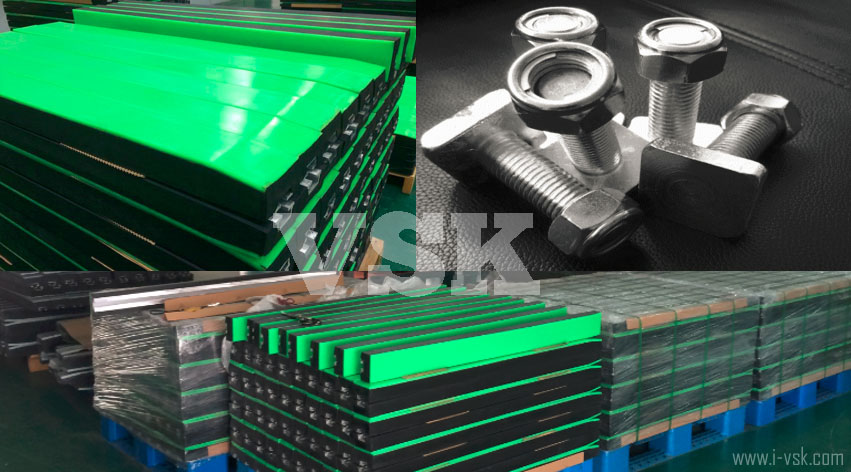

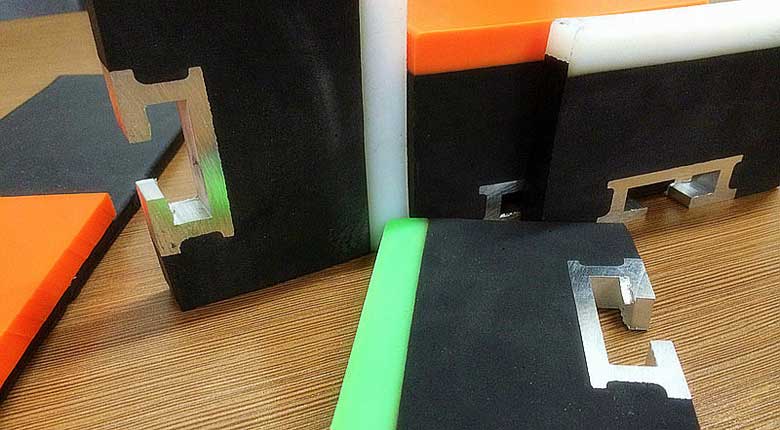

UHMW-PE impact bars
Protect your belt from impact damage.
Protect your conveyor from material splillage.
Easy to install, maintenance-free.
Thickness range: 50~100mm
Maximum length: 1800mm
