VSK supplies full range of rubber sheets, NR, SBR, EPDM, Silicon, Viton, Butyl, CR, NBR, Hypalon...
Different thickness(0.5~50mm), virous colour(Black, Red, Green, Blue, Gray, White, Transparent), any width(10~4000mm),
No matter individual usage for one small piece, or massive industrial application for hundred rolls,
VSK is willing to provide you with cost-effective solutions.
VSK Rubber Sheet Selection Chart
| Application | NR | SBR | NBR | IIR | EPDM | CR | CSM/Hypalon | MVQ/Silicon | FKM/Viton |
| Abarasion | E | E | G | G | G | G | G | P | E |
| Temperature | -30/+80 | -30/+100 | -40/+120 | -35/150 | -35/130 | -35/+100 | -50/+150 | -60/+300 | -30/+250 |
| Ageing | P | F | E | E | E | G | E | E | E |
| Water | F | G | E | G | E | G | G | G | E |
| Alkali | F | F | F | F | E | F | G | F | E |
| Acid | F | F | P | F | G | F | G | G | E |
| Oil | N | N | E | N | N | F | F | E | E |
| Aliphatic solvents | N | N | F | N | N | F | P | E | E |
| Aromatic Solvents | N | N | F | N | N | N | N | G | E |
| Halogenated Solvents | N | N | N | N | N | N | N | G | E |
| Fuels | N | N | G | N | N | N | P | G | E |
| E: Excellent G: Good F: Fair P: Poor N: Not recomend | |||||||||
Please note: this is general guide information, please contact our sales engineer for detailed information
Profiles:
Nature Rubber:
NR
Nature Rubber Sheet available with one side roughened, or fabric impression, or cold bonding layer (CN layer).
Synthetic Rubber Sheet:
SBR
EPDM / Ethylene-Propylene-Diene Monomer
NBR / Nitrile
CR / Chloroprene
IIR/Butyl
CSM/Hypalon

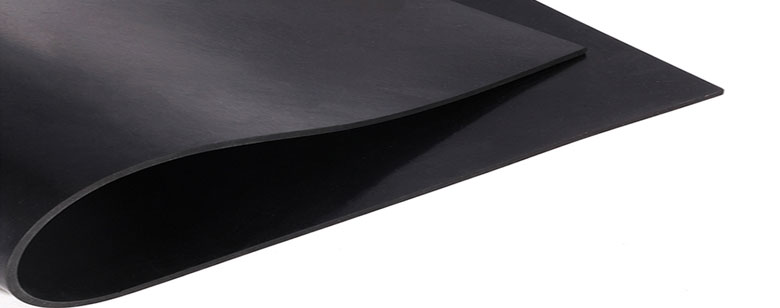

Rubber Sheets
EPDM | SBR/NR | NBR | CR | Butyl | Silicone | Viton
Rubber Sheet Maximum width 4000mm,
With or without fabric insertion,

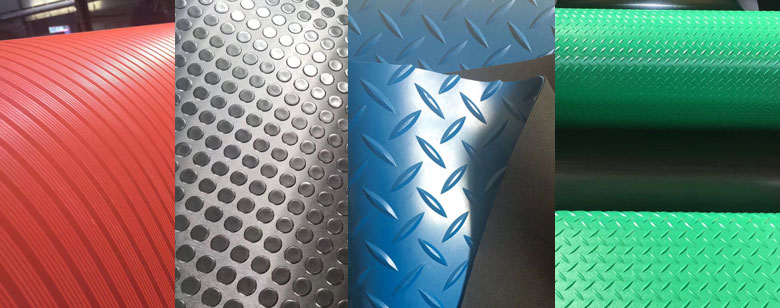

Smooth surface or with profile pattern.
Nature based, or synthetic based composit.
Sealing, Gasketing, Roofing...all applications.
