According to reinforcement: NN/EP/ST/SW/IW belt

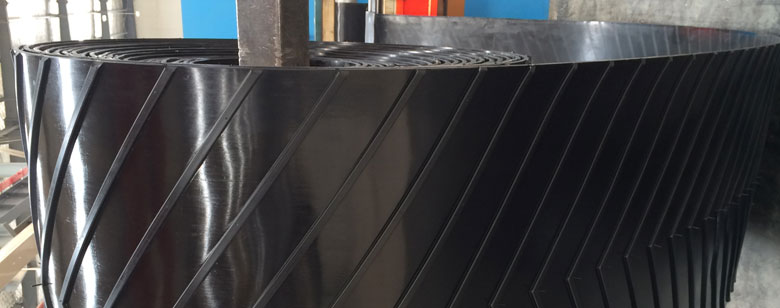

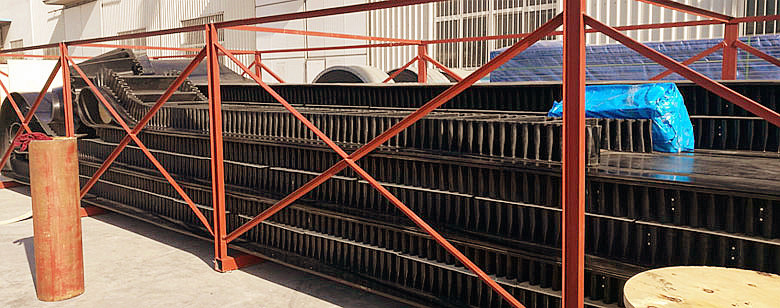

According to conveyor angle:Chevron belt, Rough top, Sidewall belt, Elevator belt,Pipe belt
According to cover compound: Wear resistant, Heat resistant, Oil resistant, Fire resistant belt.
VSK supplies high quality of rubber conveyor belt, for all industrial application.
VSK conveyor belts for general purpose available with following international Standards
| DIN Standard | ||||||
| Standard |
Tensile Strength （Mpa） |
Elongation at break (%) |
Abrasion Index (mm³) |
Adhesion between rubber and fabric （N/mm) |
Adhesion between fabric (N/mm) |
|
| ≤1.5mm | ＞1.5mm | |||||
| DIN-Z | Min.15 | Min.350 | Max.250 | Min.3.5 | Min.4.5 | Min.5 |
| DIN-Y | Min.20 | Min.400 | Max.150 | Min.3.5 | Min.4.5 | Min.5 |
| DIN-W | Min.18 | Min.400 | Max.90 | Min.3.5 | Min.4.5 | Min.5 |
| DIN-X | Min.25 | Min.450 | Max.120 | Min.3.5 | Min.4.5 | Min.5 |
| RMA Standard | ||||||
| Standard |
Tensile Strength （Mpa） |
Elongation at break (100%) |
Abrasion Index (mm³) |
Adhesion between rubber and fabric （N/mm) |
Adhesion between fabric (N/mm) |
|
| ≤1.6mm | ＞1.6mm | |||||
| RMA1 | Min.17 | 400 | 200 | Min.3 | Min.4.4 | Min.4 |
| RMA2 | Min.14 | 400 | 250 | Min.3 | Min.4.4 | Min.4 |
| BS Standard | ||||||
| Standard |
Tensile Strength （Mpa） |
Elongation at break (100%) |
Abrasion Index (mm³) |
Adhesion between rubber and fabric （N/mm) |
Adhesion between fabric (N/mm) |
|
| ≤1.6mm | ＞1.6mm | |||||
| N | Min.17 | 400 | - | Min.3 | Min.4.4 | Min.4 |
| M | Min.24 | 400 | - | Min.3 | Min.4.4 | Min.4 |
Feel free to contact our seles for special requirements.
Recommended Minimum Pulley Diameter
| Fabric Type | Recommended Minimum Diameter* | ||||||
| 2ply | 3ply | 4ply | 5ply | 6ply | 7ply | 8ply | |
| EP100 | 250 | 400 | 500 | 630 | 800 | 800 | 1000 |
| EP150 | 315 | 400 | 630 | 800 | 800 | 1000 | 1250 |
| EP200 | 415 | 500 | 630 | 800 | 1000 | 1000 | 1250 |
| EP250 | 400 | 500 | 800 | 1000 | 1000 | 1250 | 1400 |
| EP300 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 1400 |
| EP400 | 500 | 630 | 1000 | 1250 | 1250 | 1600 | - |
*Data above just for reference, please confirm with your conveyor designer or check with VSK sales.

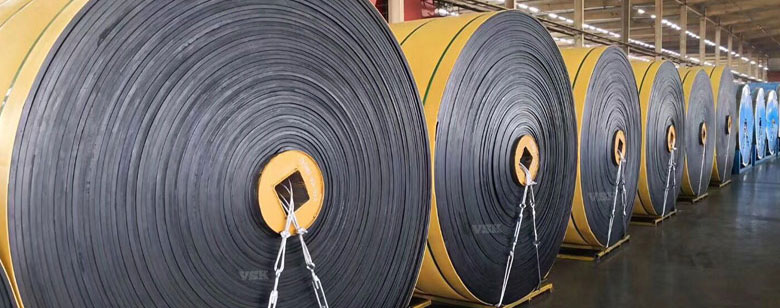

Rubber Conveyor Belts
Full range of industrial application
· Reinforced with EP,NN,ST,IW,SW
· Heat resitant;Oil,Fire resistant;Wear resistant.
· Chevron belt;Roughtop blet;Sidewall belt;Pipe belt
· Maximum 4000mm width available
· For Cement, Power plant, Steel, Mining, Port, Quarry, Grain, Fertilizer,Construction...
